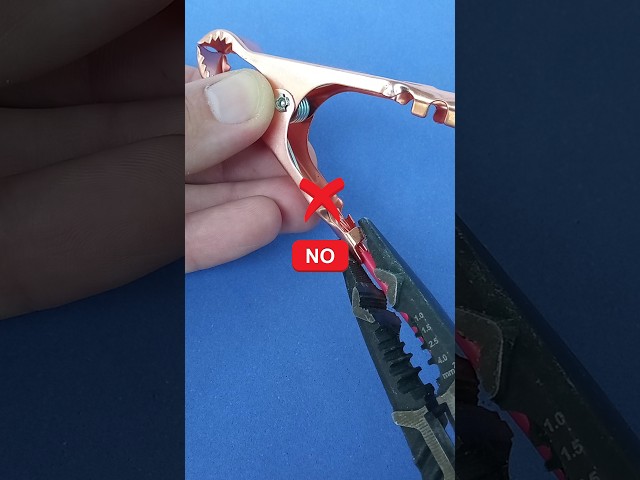

To securely connect Crocodile Clips (Alligator Clips) to a wire, follow these steps for a safe and reliable connection:
Steps:
Strip the Wire – Use wire strippers to remove about 10–15mm (0.4–0.6 inches) of insulation from the end of the wire, exposing the conductor.
Twist the Strands – If the wire is stranded, twist the strands tightly to prevent fraying.
Open the Crocodile Clip – Squeeze the clip’s jaws to open them fully.
Insert the Wire – Place the exposed wire into the center of the clip’s jaws.
Close & Secure – Release the clip to grip the wire firmly. Ensure the metal teeth make full contact with the conductor.
Tug Test – Gently pull the wire to confirm it’s securely held.
Pro Tips for Better Security:
✔ Use Tinned Wires – Solder the exposed strands to prevent fraying and improve conductivity.
✔ Add Heat Shrink Tubing – Cover the connection for strain relief and insulation.
✔ Double-Check Contact – Ensure no loose strands are outside the clip, which could cause short circuits.
Safety Warning:
⚠ Avoid Overloading – Crocodile clips are not ideal for high-current applications.
⚠ Insulate Exposed Metal – Use electrical tape or heat shrink to prevent accidental contact.
